Automatic Identity Card Plastic Card Laminator 600x730 For 7x8 Layout Or Less Size

Automatic Tray Moving Plastic Card Laminator YLL-27C 600*730 For 7*8 Layout Or Less Size

Plastic Card Laminator YLL-27C 600*730

1. Introduction of Automatic Tray Moving Plastic Card Laminator YLL-27C 600*730 For 7*8 Layout Or Less Size

Automatic tray moving from hot tower to cold tower after hot lamination finished, manual tray feeding and removing, template size 600*730mm for 7*8 layout or less size, 2 towers, 7 openings for each, 4 cylinders for each tower, PLC controlled, designed for smart card or RFID Card INLAY lamination

2. Key Features of Automatic Tray Moving Plastic Card Laminator YLL-27C 600*730 For 7*8 Layout Or Less Size

• It is controlled by Programmable logic controller with intelligent man-machine interface touch screen for easy operation. Many types of lamination parameters can be automatically saved;
• It can realize automatic tray moving from hot tower to cool tower after the hot lamination operation is finished.

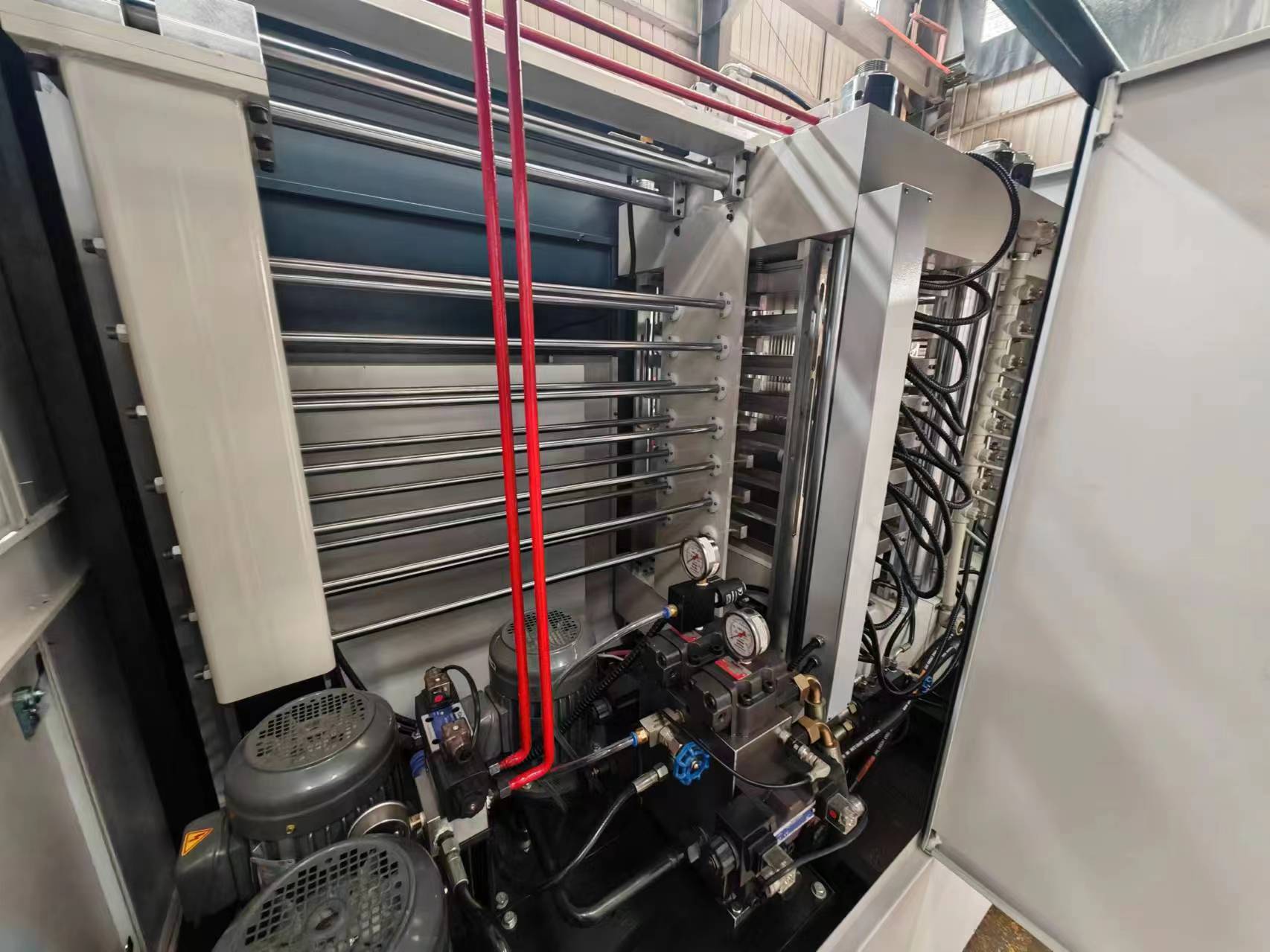

• pressure supply is realized by two motors and two oil pumps for very high reliability;
• Automatic lamination parallelism adjustment is available.
• The pressure and temperature control module is applied to ensure higher control precision.
• If the working laminator power supply is accidentally off, the operator can open the laminating plates manually to minimize unnecessary losses;
• The heating tower is installed with external thermal insulation housing to ensure efficient and environmentally friendly lamination.

3. Technical Parameter of Automatic Tray Moving Plastic Card Laminator YLL-27C 600*730 For 7*8 Layout Or Less Size

1). PVC sheet layout: 6×8 5×5, 3×8, 4×8,7×8

2). Laminating template size and material: 600×730mm, aluminum alloy

3). Hydraulic cylinder number: 4 cylinders (diameter 125mm) for each tower

4). Daylight number/distance: 7 daylights, 2 tower/50mm

5). Control mode: PLC

6). Pressure precision and range: +/-0.3Mpa, 0.3-16Mpa (adjustable)

7). Temperature control precision: +/-1℃

8). Heating temperature: ≤200℃

9). Power: 23 KW (Maximum)

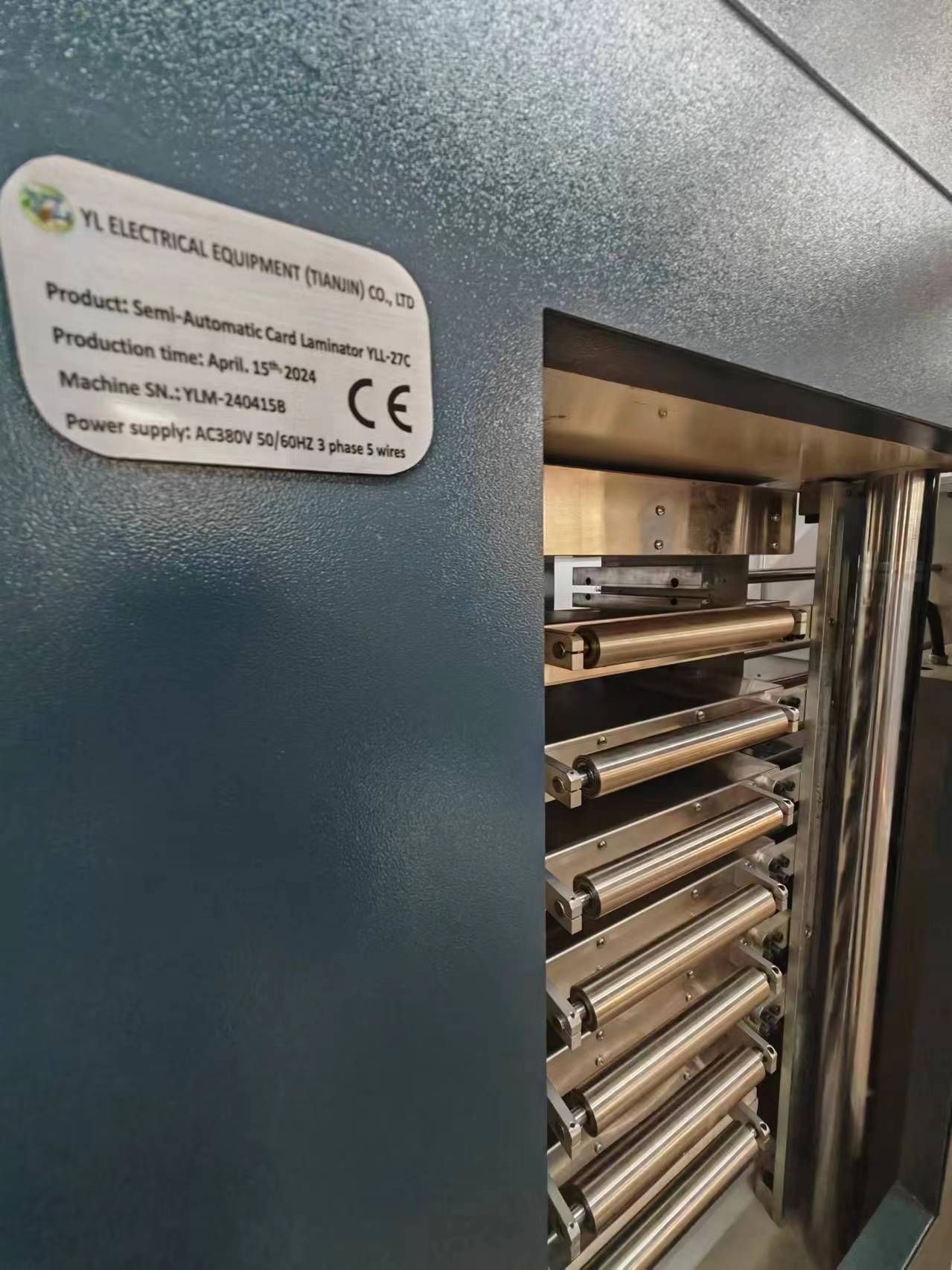

10). Power supply: AC380V 50/60HZ 3 phase 5 wires

11). Dimension: 2500mm×1200mm×1850mm

12). Gross weight: 3400 kg.

4. Details of Automatic Tray Moving Plastic Card Laminator YLL-27C 600*730 For 7*8 Layout Or Less Size

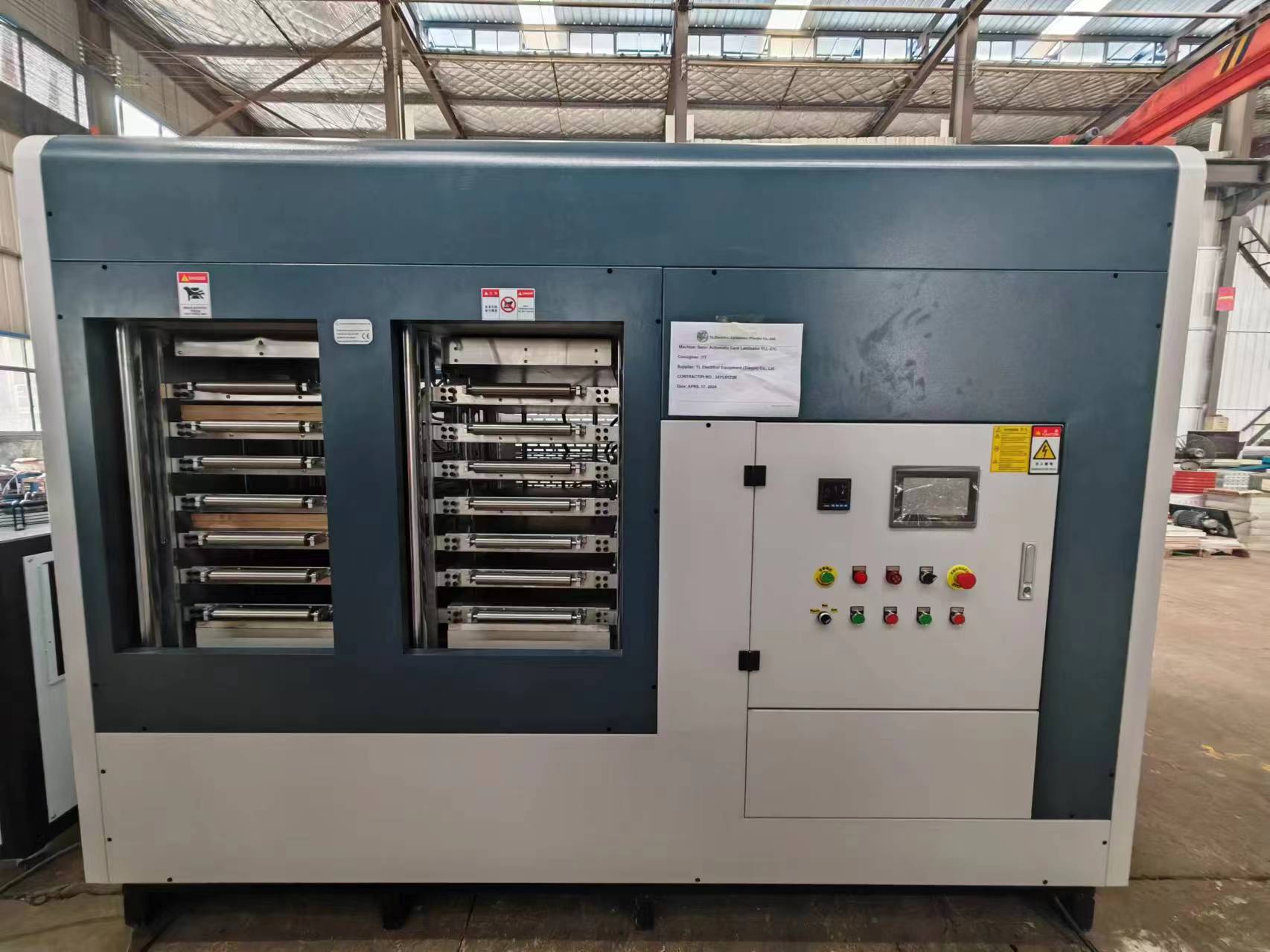

plastic card laminator plc controlled

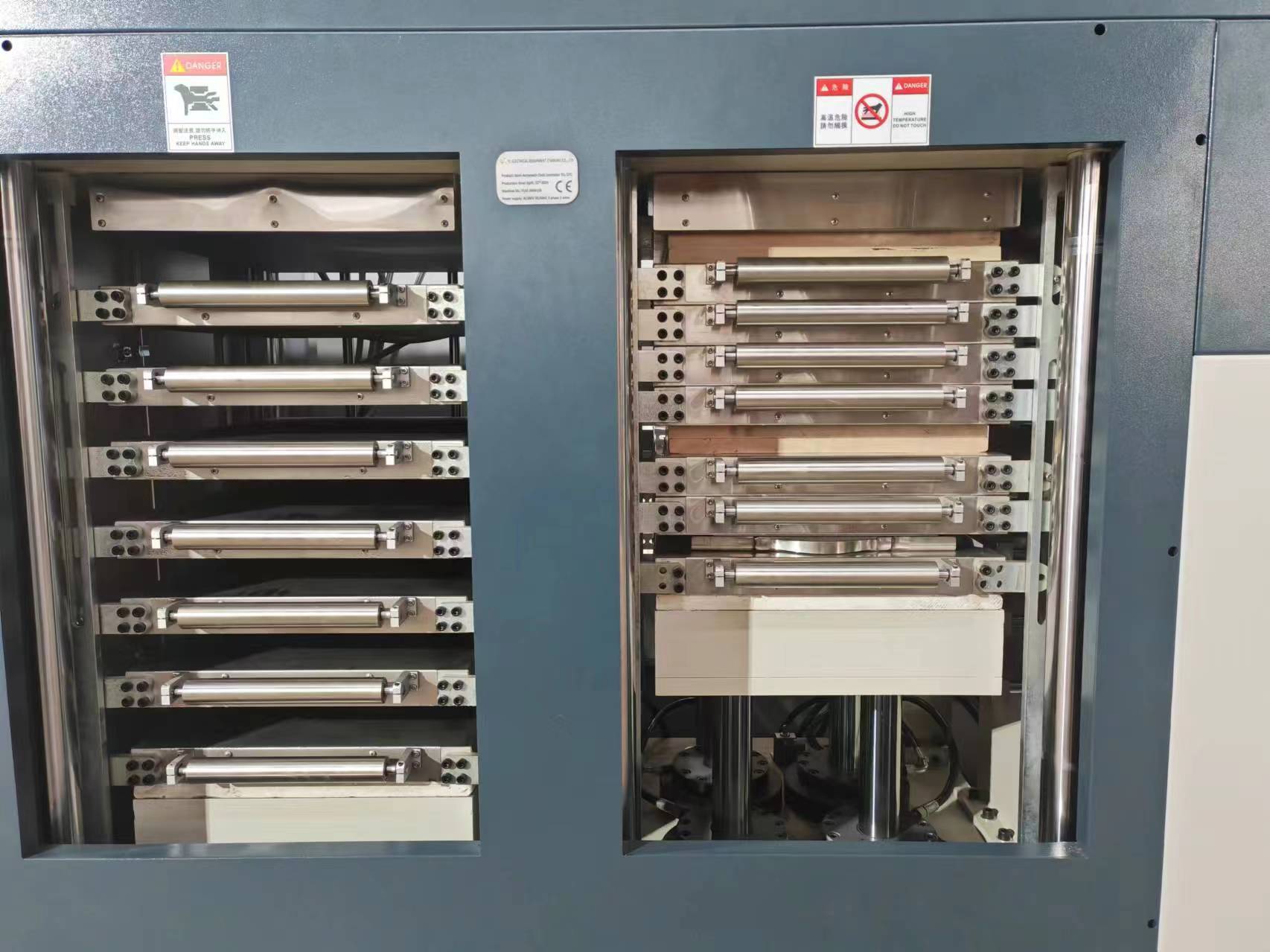

600x730 identity card lamination machine

7x8 layout plastic card laminator

Automatic Identity Card Plastic Card Laminator 600x730 For 7x8 Layout Or Less Size Images
