Full Auto High-Speed Punching And Sorting Collection Poker Playing Card Puncher YLP-APC-1000
Full Automatic Poker Card Punching Machine/Full Auto Poker Playing Card Puncher/Poker Playing Card Die Cutter/Poker Card Die Cutting Machine YLP-APC-1000
1. Machine introduction of Full Auto High-Speed Punching And Sorting Collection Poker Playing Card Puncher YLP-APC-1000
This machine is designed for the purpose of automatic high-speed punching and sorting collection of poker playing cards. Comparing with other full automatic puncher model, this model can punch larger sheet size (maximum size 889 x 590 mm) with faster punching speed.
The machine adopts touch screen friendly man-machine interface operation, and high-power servo motor works as punching power. The high-sensitivity laser sensor cooperates with two sets of stepping systems for vertical search cursor positioning and servo motors for horizontal search cursor positioning and feeding. The two-direction positioning of X and Y axis in the plane is realized, and the punching accuracy is not affected by the material edge cutting accuracy.
2. Key Features of Full Auto High-Speed Punching And Sorting Collection Poker Playing Card Puncher YLP-APC-1000
- With high sensitivity photoelectric sensor and high-quality imported servo system, the position parameters of each punching point can be adjusted with high precision.
- It integrates such functions of full automatic sheet suction and feeding, precise sheet conveying and punching, waste discharge and punched card collection.
- The high-power servo motor is used as punching power with low noise, stable power and adjustable punching speed. When punching cards of different thickness, the effect is better.
- Both automatic search cursor positioning punching mode and side positioning punching mode are available, and the punching style is flexible and practical.
- The PLC program control can realize automatic operation and can give an timely problem alarm and operation shutdown with the display of solution.
3. Technical Parameter of Full Auto High-Speed Punching And Sorting Collection Poker Playing Card Puncher YLP-APC-1000
★ Main Technical Parameters
| Power supply | AC 380V/50 HZ | Suitable material | PVC,ABS,paper (different molds matching different materials) |
| Power | 10.5KW | Maximum punched sheet size | 889 X 590mm |
| Air supply | 6 kg/c㎡(no water) | Card collection width range | 50~70 mm |
| Number of operators | 1 person | Punched sheet thickness range | 0.25~1.5 mm |
| Punching precise | ±0.10mm | Counterpoint mode | Side positioning or cursor line alignment |
| Output | 800~1000 big sheets /hour | Control mode | PLC program+ servo system |
| Weight | About 2000Kg | Dimensions | around L4000×W1200×H1750mm |
4. Application of Full Auto High-Speed Punching And Sorting Collection Poker Playing Card Puncher YLP-APC-1000
The machine-Full Automatic Poker Card Punching Machine is also named as Full Automatic Poker Playing Card Puncher, Full Auto Poker Playing Card Die Cutter or Full Auto Poker Playing Card Die Cutting machine.
|
|

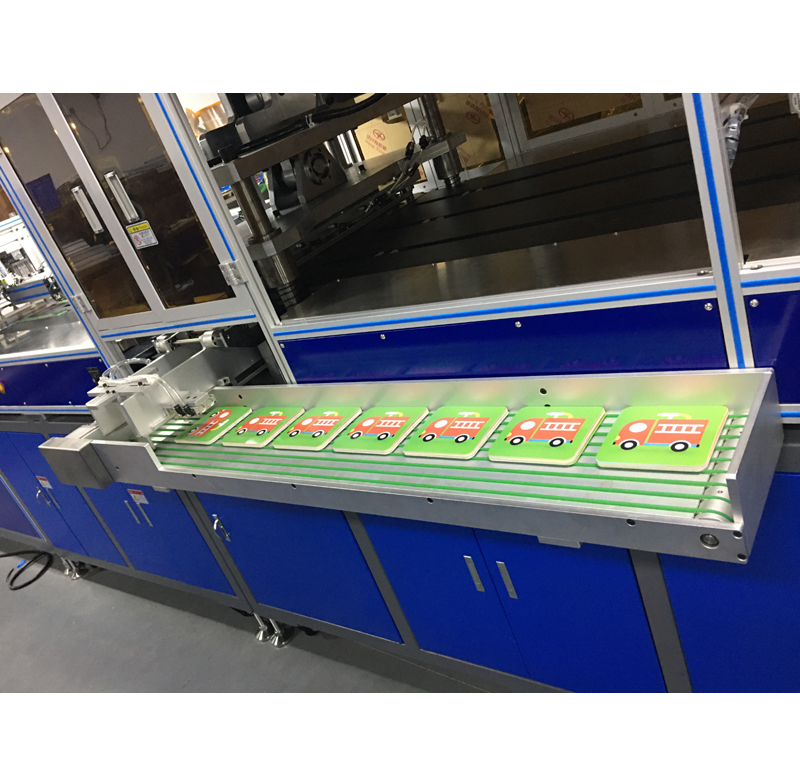

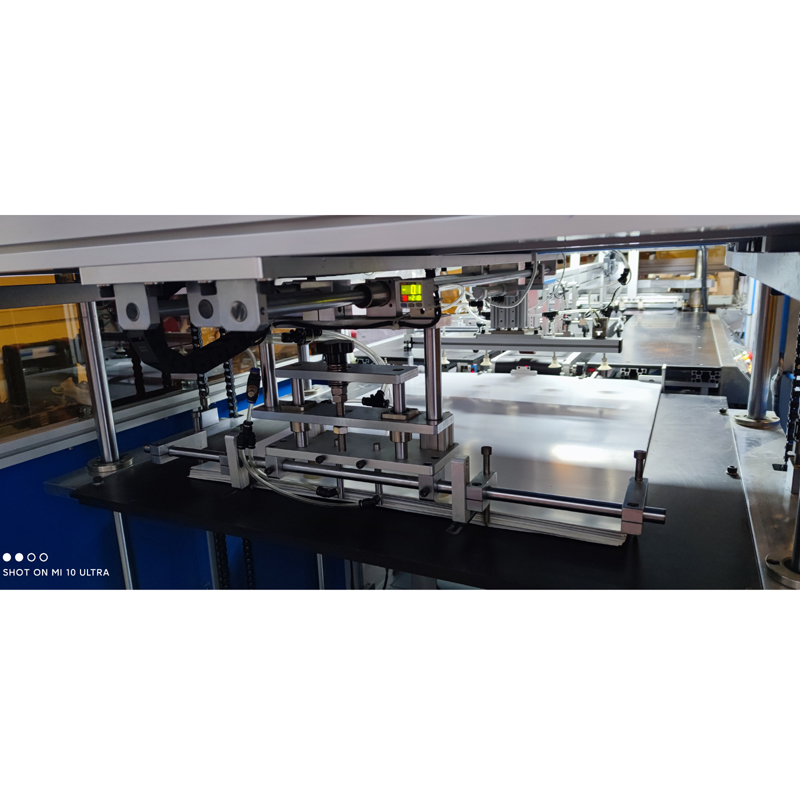

Full Auto high-speed punching and sorting collection Poker Playing Card Puncher YLP-APC-1000 Images
|
