Speedy Plastic Card Punching 4x8 layout Smart Card Card Die Cutting Machine YLP-4
1. Introduction of Speedy Plastic Card Punching 4x8 layout Smart Card Card Die Cutting Machine YLP-4
This machine model is known as the most economic automatic card puncher. It features compact structure, reliable performance, economic price and full automatic operation. It is controlled automatically by the PLC program, and the Chinese and English bilingual touch screen is working with a friendly man-machine interface. Firstly, the high-sensitivity laser sensor and two groups of stepping system are used to realize the longitudinal search and positioning, and then the servo motor drives the high-precision ball screw module to carry out the transverse sheet positioning and feeding, which is featuring high speed and high precision. The automatic sheet picking and feeding system can greatly reduce the work intensity of the operator.
2. Feature Description of Speedy Plastic Card Punching 4x8 layout Smart Card Card Die Cutting Machine YLP-4
Feature Description
- It is applied for punching the laminated plastic sheets ( 4×8/4×10 layout) into ISO CR80 cards in a speedy and precise way.
- It applies high-quality PLC, touch screen and servo system in order to ensure the machine stability;
- The guide screws applied can well ensure the card conveying and punching precision.
- The reliable servo motor is applied to ensure low noise and stable pressure control.
- The punching mould is specially designed to ensure perfect punching result and long-time service life.
| Suitable Material | PVC, ABS, PET, PETG, paper card, PVC and ABS mixed materials, etc. |
| Air supply | 6KG/CM2 |
| Power supply | AC380V 50Hz 3-phase 5-line |
| Power rating | 3.5kw |
| Productivity | 12000-14000 cards per hour |
| Dimension | L1700×W830×H1520mm |
| Weight | Approx.800 kg |
3. Technical Parameter of Speedy Plastic Card Punching 4x8 layout Smart Card Card Die Cutting Machine YLP-4
Speedy Plastic Card Punching 4x8 layout Smart Card Card Die Cutting Machine YLP-4 is also named Speedy Plastic Card Puncher/Card Punching Machine/Card Die Cutter/Card Die Cutting Machine YLP-4
(Plastic card sheet puncher, plastic card puncher, card die cutter, card punching machine, card machine, card production machine)
★ Main Technical Parameters
| Power supply | AC 380V/50 HZ | Applicable layout | 4x8/4x10 layout |
| Total Power | 3.5KW | Control mode | PLC program + servo system |
| Air Source | 6 kg/c㎡(dry) | Operator number | 1 person |
| Air Consumption | 70L/min | Dimension | L1700×W850×H1500mm |
| Weight | About 800Kg | Punched card | Comply with ISO CR-80-ISO7810 international standard |
| Punching precision | ±0.10mm | Max.Speed | 12000~14000 /hour |
| Applicable materials | PVC, ABS, pet, PETG, paper card, PVC and ABS mixed materials, etc. |
4. Free spare parts of Speedy Plastic Card Punching 4x8 layout Smart Card Card Die Cutting Machine YLP-4
Packing information: using the PE film as the protection fims insides, standard export plywood case outside;
| FREE SPARE PART LIST |
| SN | Part name | Part model | Qty. |
| 1 | Electromagnetic Valve | 4V110 | 1pc |
| 2 | Relay14PIN DC24V | MY4N-J DC 24V | 3pcs |
| 3 | Fuse | 10A | 5pcs |
| 4 | Fuse holder | RT18-32 | 1pc |
| 5 | synchronous belt | 10*200XL | 1pc |
| 6 | screw driver | | 1 set |
| 7 | Open spanner | | 1 set |
Our service :
Pre-sale
(1) Professional suggestions (raw material matching, machine selection, the condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity and the size of brick)
(3) Efficient on-line service
(4) Welcome to visit our factory and production line any time, if you need, we can make invitation letter for you.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix, and operate
(3) offer training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time ,keep well communication with each other
Guarantee
(1)We can supply one year guarantee period for our card machines, if the client have any question ,they could contact our service department any time ,we will supply efficient service .
(2)Within one year ,if the client meet the unsolvable questions ,we can make site supporting.
|
|

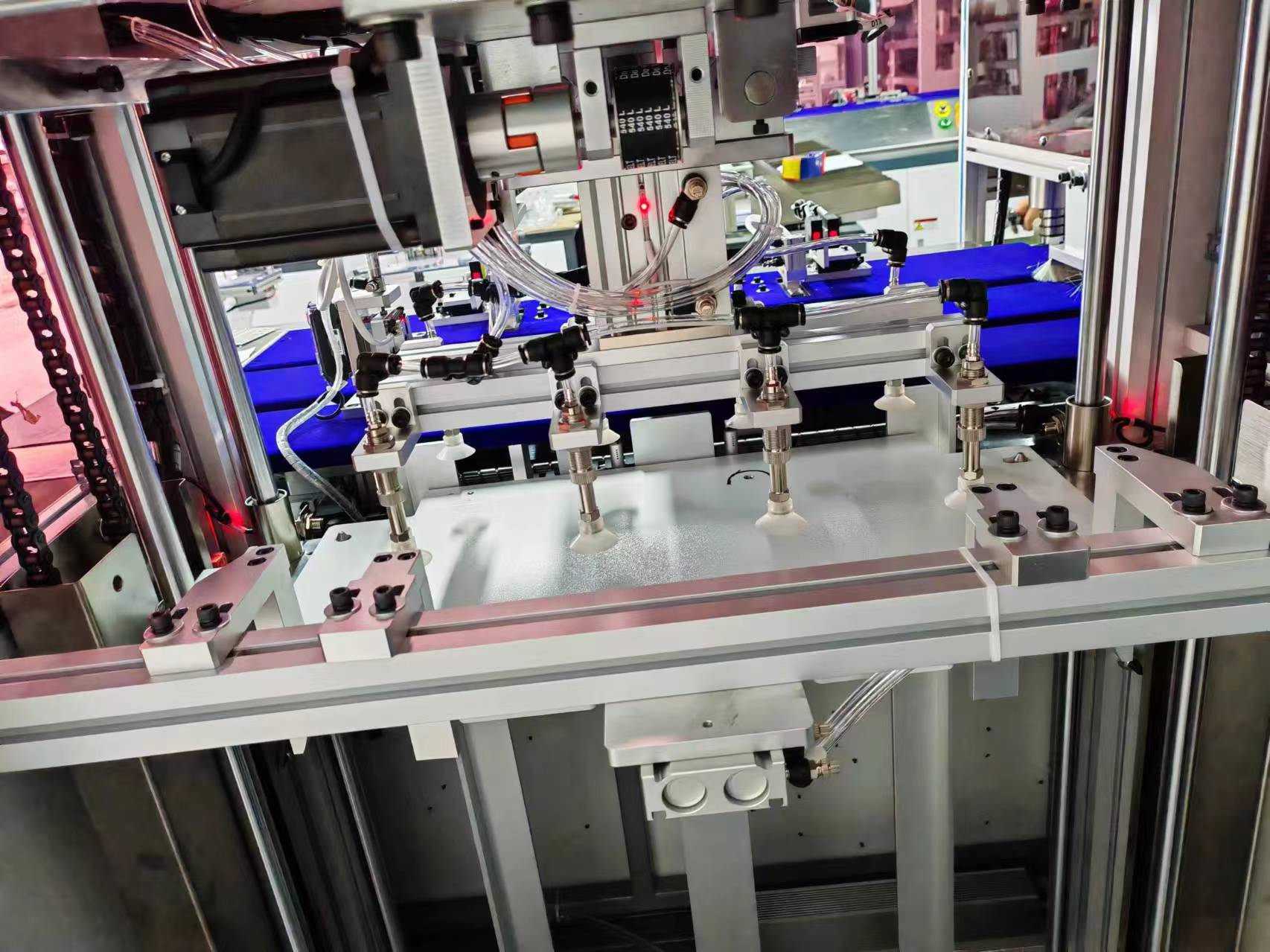

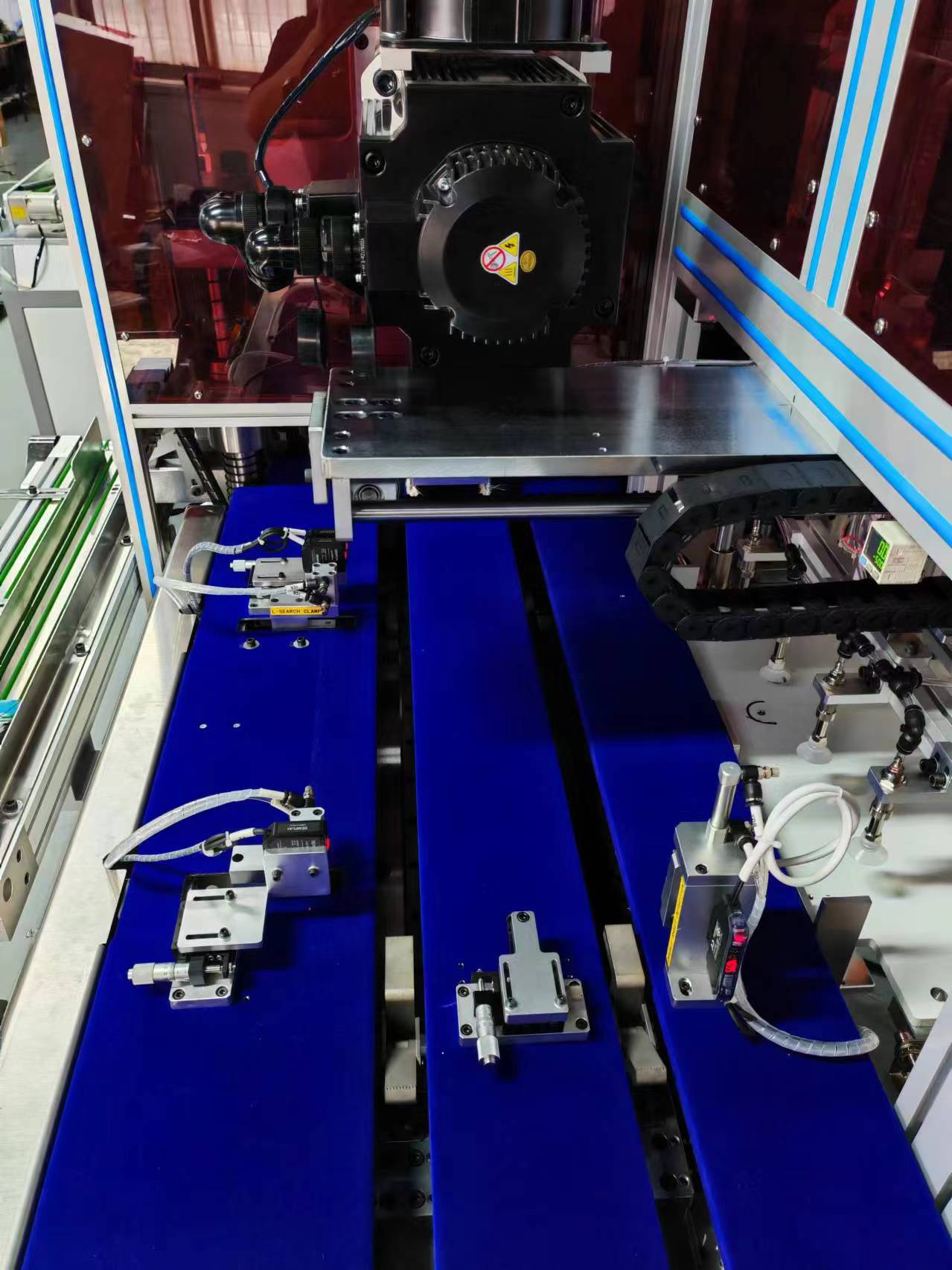

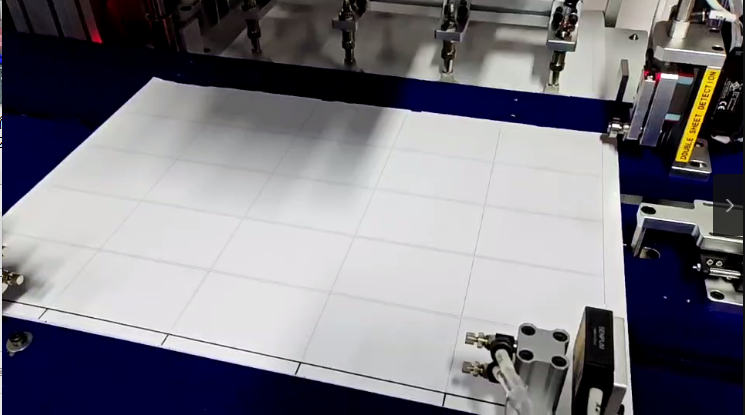

Speedy Plastic Card Punching 4x8 layout Smart Card Card Die Cutting Machine YLP-4 Images
|
