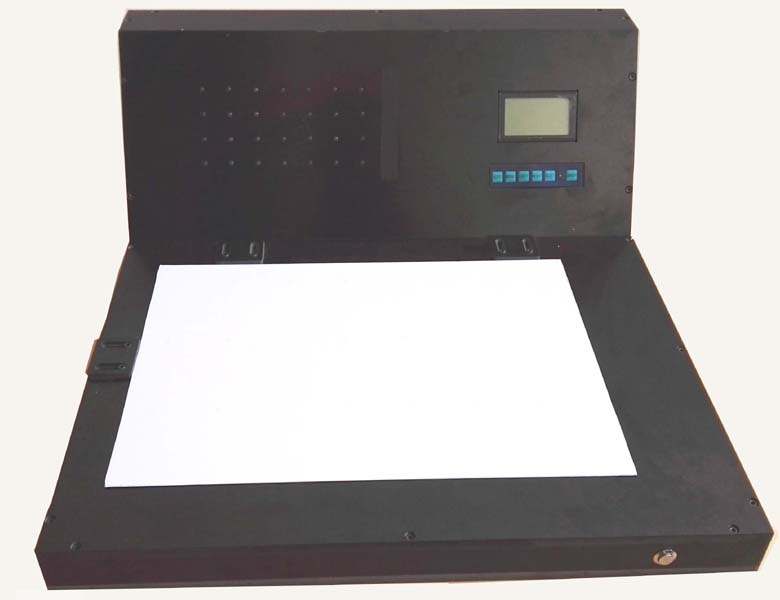

High-Precision RFID Card INLAY Sheet QC Machine INLAY Sheet Bonding Tester YBT-60
INLAY Sheet Bonding Tester/RFID Card INLAY Sheet QC Machine/RFID Card INLAY Sheet Quality Tester/INLAY Sheet Bonding Conductivity Tester YBT-60
1. Machine Introduction of High-Precision RFID Card INLAY Sheet QC Machine INLAY Sheet Bonding Tester YBT-60
This machine is designed for checking the qualification ratio of INLAY chip and antenna bonding before or after lamination. The software inside has various communication protocol formats (such as ISO 14443A/B, ISO 15693).
2. Features of High-Precision RFID Card INLAY Sheet QC Machine INLAY Sheet Bonding Tester YBT-60
It can check various high-frequency standard RFID chips. The red lamps will become on if any unit is found bad. It is a necessary testing device in the process of contactless or RFID card INLAY or Prelam sheet production.
| Speed | 1000-1200 sheets per hour. |
| Dimension | L500×W400×H300mm |
| Weight | 15kgs |
| Power Supply | AC220V 50/60HZ |
| Power | 0.5KW |

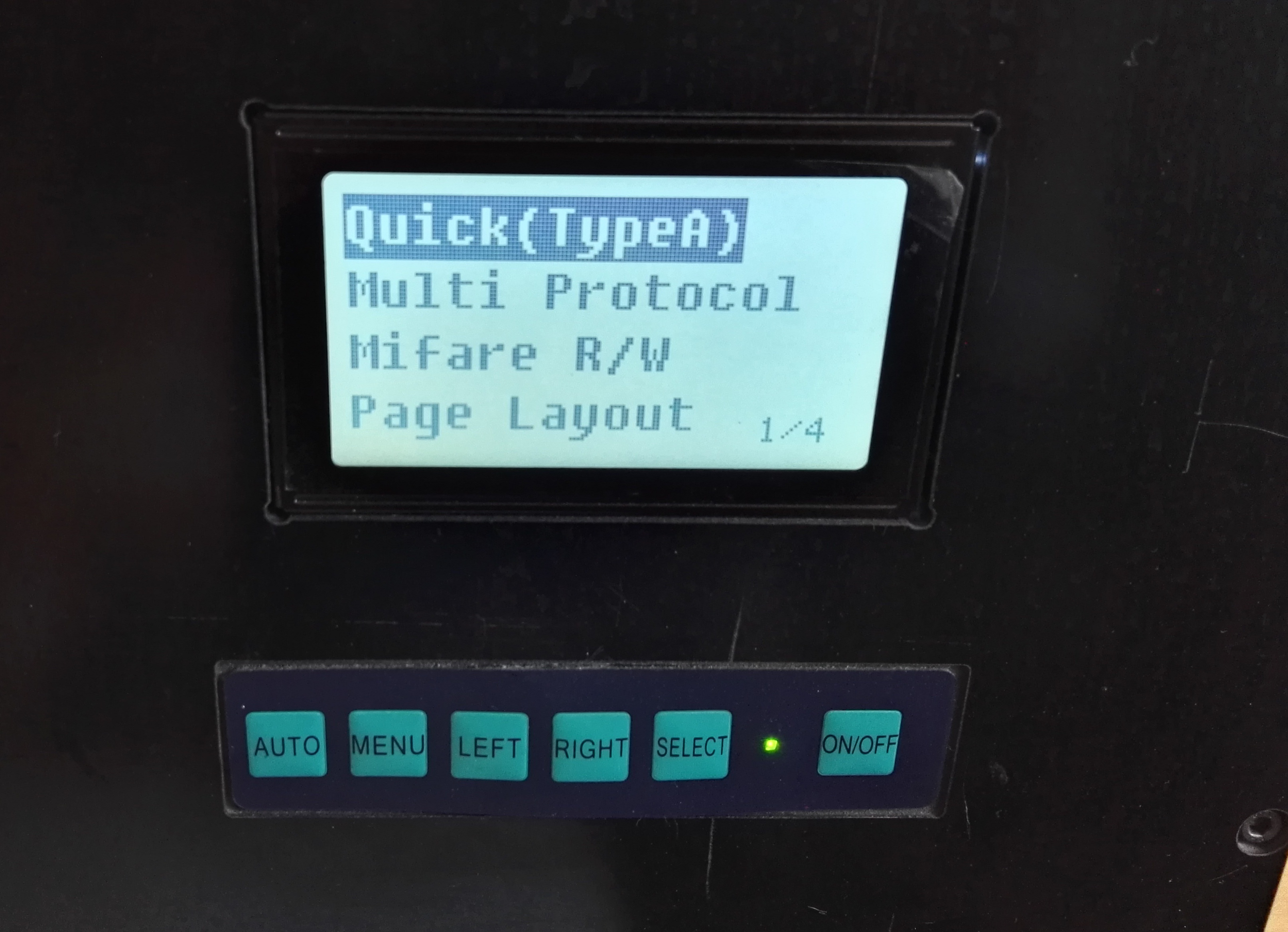

| Control mode | Chip microcomputer |
| Processed chip model | HF chips as per ISO 14443A/ISO 14443B/ISO 15693 |
3. Technical Parameter of High-Precision RFID Card INLAY Sheet QC Machine INLAY Sheet Bonding Tester YBT-60
- ) Speed: 1000-1200 sheets per hour.
- ) Dimension: L500×W400×H300mm
- ) Weight: 15 KG
- ) Power supply: AC220V 50/60HZ
- ) Power: 0.5KW
- ) Control mode: Chip microcomputer
Processed chip model: HF chips as per ISO 14443A/ISO 14443B/ISO 15693.
4.Application of High-Precision RFID Card INLAY Sheet QC Machine INLAY Sheet Bonding Tester YBT-60

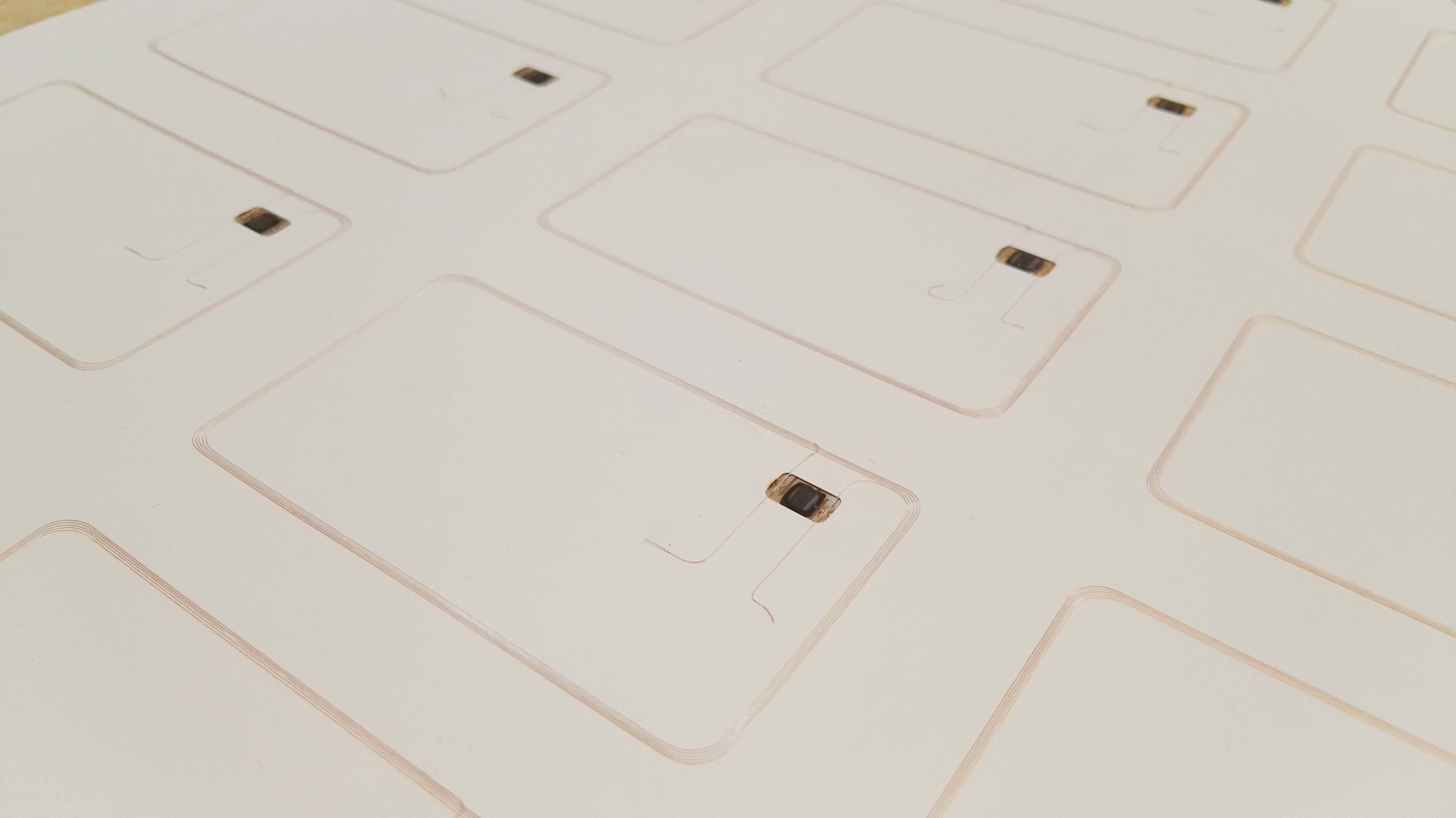

Check the conductivity of the bonded circuit units after bonding process to see whether all the units are all good or not.
Machine needed: INLAY Sheet Bonding Tester YBT-60
Machine quantity needed: 2 sets
INLAY Sheet Bonding Tester YBT-60 is also known or named as RFID Card INLAY Sheet QC Machine, RFID Card INLAY Sheet Quality Tester, INLAY Sheet Bonding Conductivity Tester or RFID Card INLAY Sheet Frequency Reader YBT-60.
